Components

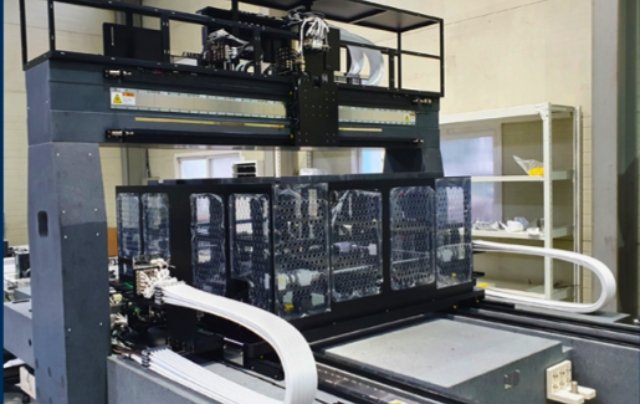

Display

Check out our display products, including Display AOI, Laser cutting/repair, and Glass review/repair, used in equipment that inspects various defects on LCD/OLED substrates.

socket

High‑performance test sockets tailored to customer requirements. They can be used for manual testing as well as with ATE handlers, and are customized for engineering, R&D, and high‑volume production.

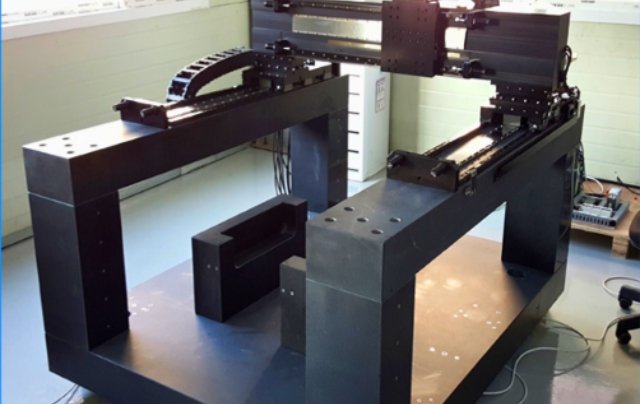

PCB

The machine is a precision stage used in equipment that forms PCB substrate circuits by shining strong light.

Controller

Manual testing is possible without a controller (including switch contact terminals)
Compatible with Controller

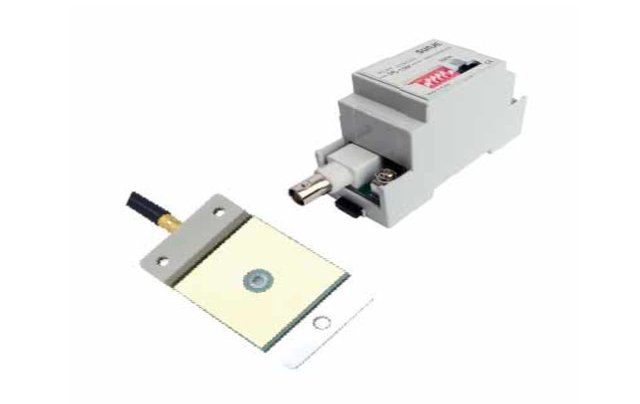

sensor

Balance mode can be set to monitor the performance of the ionizer.
When Balance mode is set, visibility is secured through the color and flashing cycle of the indicated LED (3 colors).
Instantaneous voltage change detection function of the entire field when the peak mode is set Instantaneous voltage change detection function of the entire field when the peak mode is set
Real-time checks, long-term data accumulation, and Data Viewer functions monitor the program.

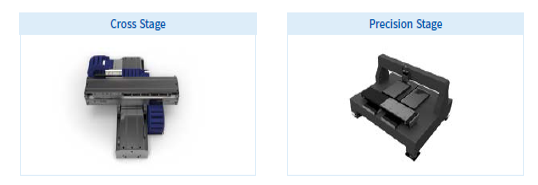

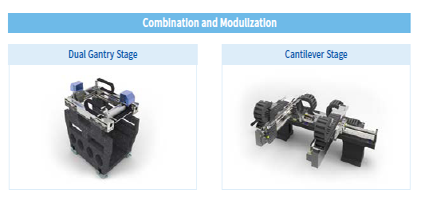

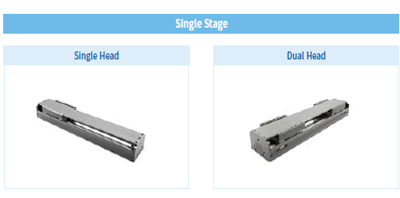

Linear Stage Division

High solidity material extrusion base – Various base sizes: 168, 200, 250, 300 (mm)
High precision and repeatability: less than 1㎛
High-speed motion: Maximum speed of 4m/s
Quiet motion with Retainer type LM guide applied
Customized order-made service with extensive experience in various stage combinations.

Swing Clamp

SW-N

Line Up : Ø12, 16, 20, 25, 32, 40 Size
90° Swing Clamp Cylinder
Clamp Arm
Line Up : Ø12, 16, 20, 25, 32, 40 Size
90° Swing Clamp Cylinder.

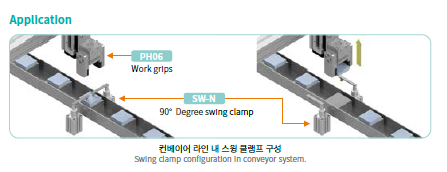

Clamp arm swings to avoid interference ⇨ Ideal for vertical loading/unloading

SWP-N

Line Up : Ø30, 40, 50 Size
Line Up : Ø30, 40, 50 Size
For large workpieces, swings in place before moving linearly to clamp. ⇨ Best for avoiding interference at the top of the clamp.
